ACTS 9898 DOOR PIVOT HINGE SOFT CLOSE

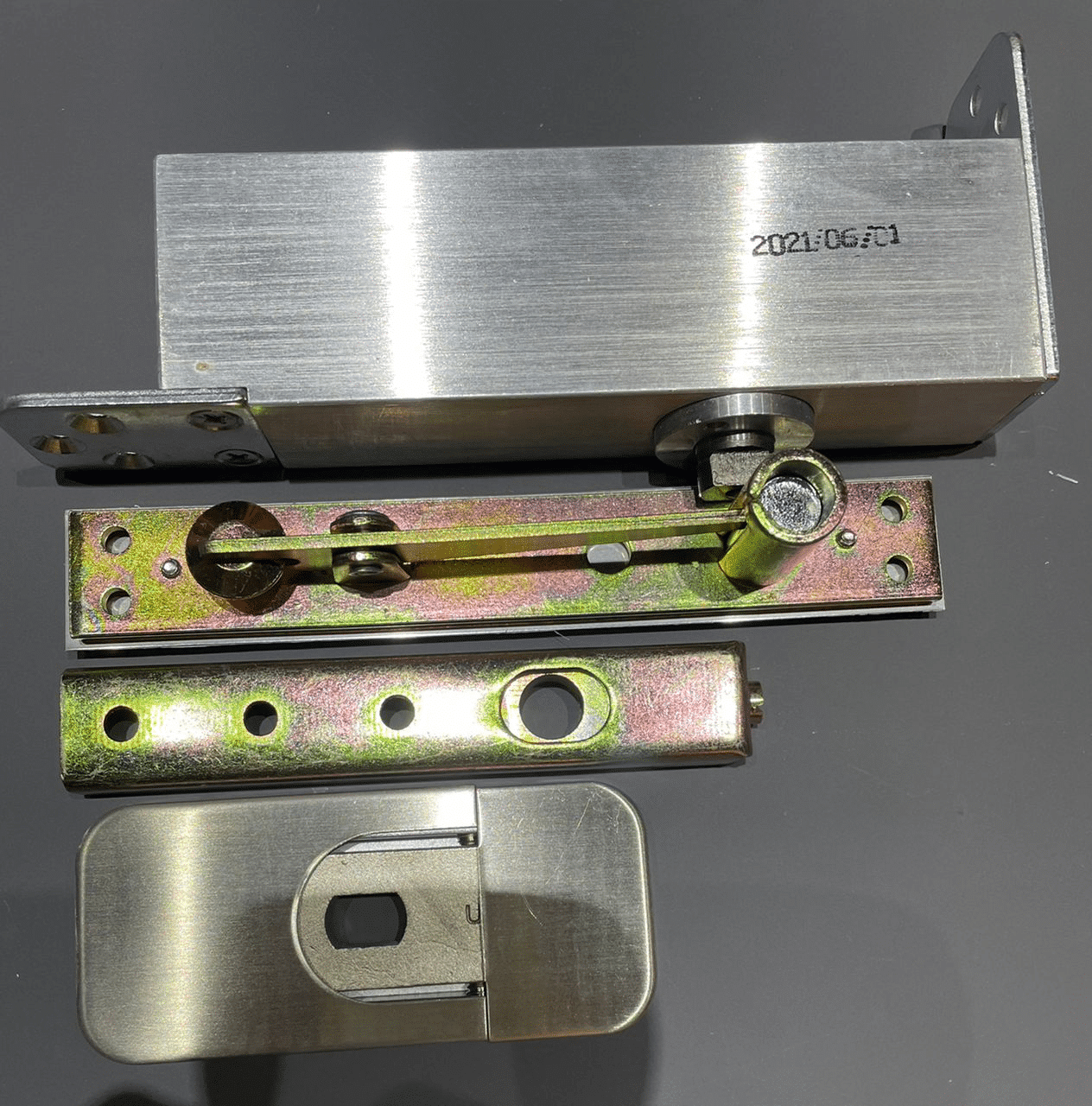

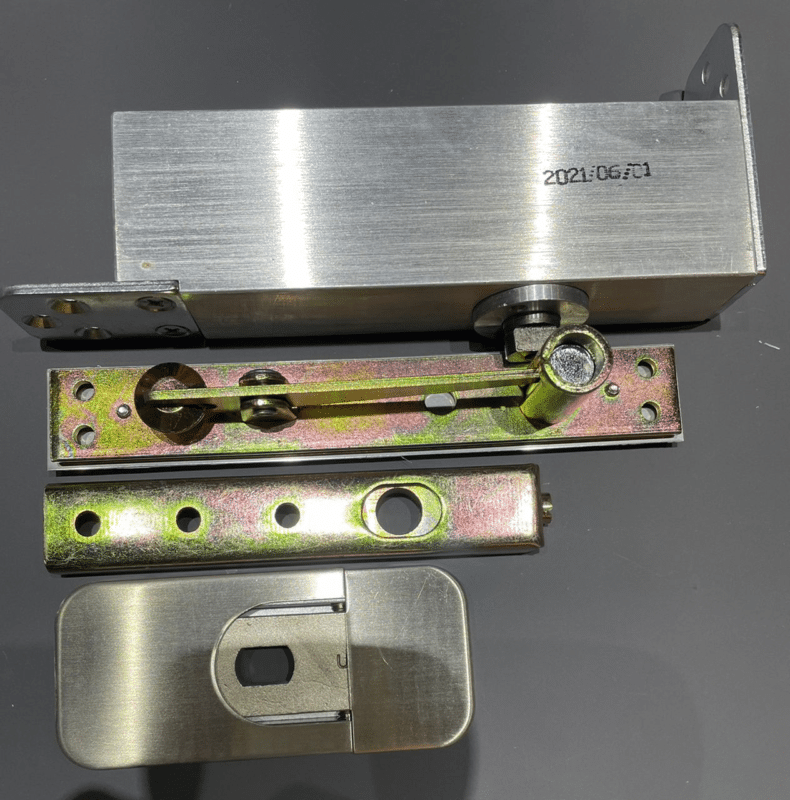

Acts 9898 door pivot hinge soft close is a premium hydraulic pivot door closer designed for single and double action door applications across Malaysia. Unlike a standard overhead door closer that mounts on the door face, the acts 9898 door pivot hinge soft close integrates the door closer function directly into the pivot hinge body. This concealed approach eliminates the need for a visible door closer arm on the surface, giving the door a clean and uncluttered appearance — a popular specification among interior designers and architects across Malaysia working on hidden door, pivot door, and plywood door projects. This product supports doors up to 50kg in weight and a maximum door width of 800mm, covering the most commonly specified residential and light commercial door sizes in Malaysia. It is suitable for doors with a 45mm thickness, and is compatible with both DIN right and DIN left door configurations — making it fully reversible and versatile across different installation orientations. The acts 9898 door pivot hinge soft close features a hydraulic latching action valve that is independently adjustable, as well as a separate closing speed valve adjustment. These two independent controls allow the installer to fine-tune both the latching speed and the closing speed of the door separately, ensuring the door closes smoothly, latches securely, and never slams regardless of environmental conditions. A hold-open function at 90 degrees is also built in, allowing the door to be held open at a right angle without additional door stops or wedges — a practical feature for high-traffic doorways throughout Malaysia. The closing force of this product complies with EN1154 standards, confirming its performance meets internationally recognised door closer specifications. Priced at RM350.0 and in stock at Acts Hardware Malaysia. Shop the Acts 9898 Door Pivot Hinge Soft Close at Acts Hardware, your trusted hardware supplier in Johor Bahru, Malaysia.   Related
